Optická závora QCE72-30-2130mm
Kód: 2099
Certifikované v EU
Všechny produkty jsou certifikovány pomocí Notified Body v EU.
Garance vrácení peněz!
Věříme si a pokud budete nespokojeni, peníze Vám vrátíme.
Testováno!
Všechny typy produktů jsme v ČR otestovali a ručíme za kvalitu!
Produkty do 14 dnů
na jakékoliv místo v rámci EU
Detailní popis produktu
|
Product model
|
|||
|
Standard configuration
|

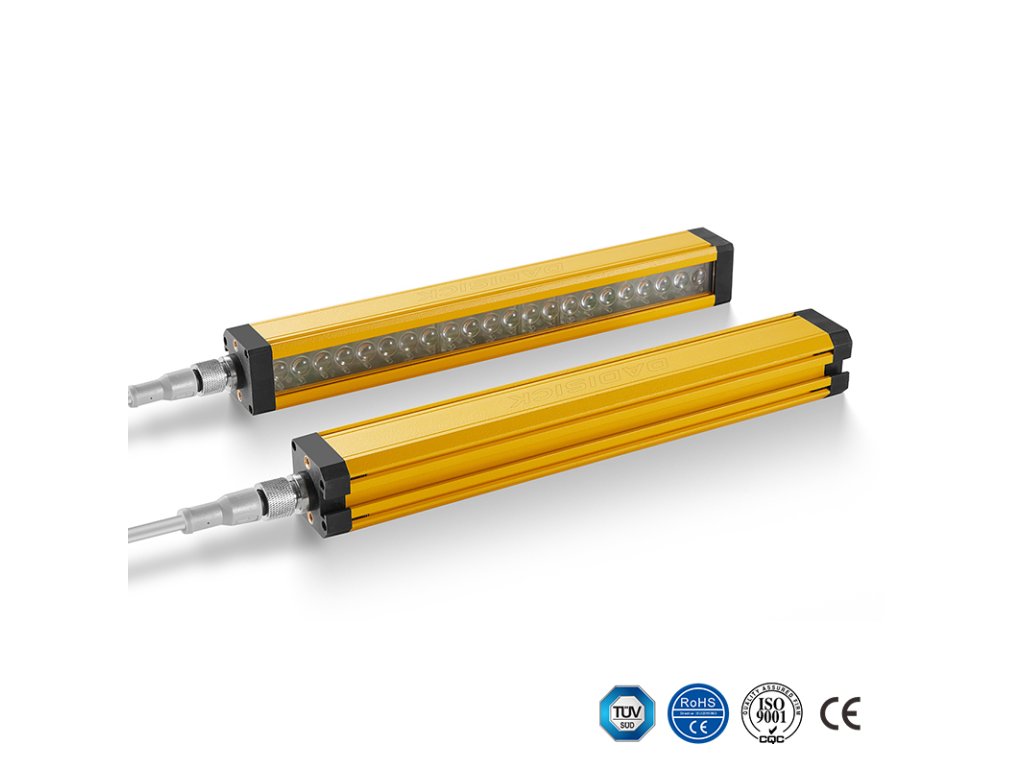

QCE series safety curtains for industry
|
||
|
Light curtain form
|

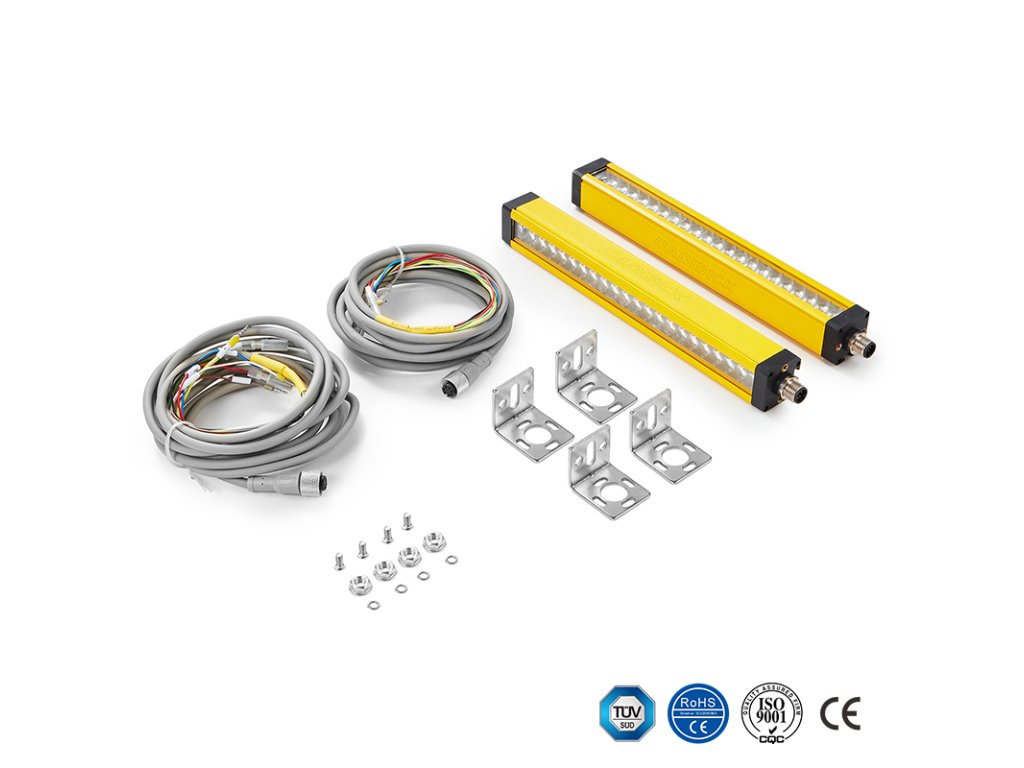

One receiver, one transmitter, two data lines, one right-angle rack, and one t-shaped screw
|
||
|
Safety Certificate
|
TÜV CE, China GB certificate, ISO Certificate UL- FCC,TYPE 4
|
||
|
Standard packaging
|
Standard industrial environment
|
||
|
Features
|
|||
|
Resolution ratio
|
30mm
|
||
|
Check the accuracy
|
38mm
|
||
|
Number of beams
|
72
|
||
|
Protection height
|
2130mm
|
||
|
Overall dimension
|
30mm*30mm*L，L is the length of emitter and receiver.
|
||
|
Detection distance
|
30-6000mm
|
||
|
Response time
|
≤15ms
|
||
|
Mechanical data
|
|||
|
Housing material
|
Housing material
|
||
|
Metal shell
|
Aluminium
|
||
|
Lens front screen material
|
Acrylic
|
||
|
Upper and lower cover materials
|
ABS reinforced nylon PA66+30% GF
|
||
|
Synchronization
|
|||
|
Consumption current
|
≤200mA
|
||
|
Output mode
|
2 sets of PNP, with current of 500mA and voltage below 1.5V, polarity, short circuit and over-cutting protection
|
||
|
Output status
|
ON (receiving indicator green light)
|
||
|
Indicator light
|
Transmitter: power indicator light (red); receiver: output indicator light on (green), blackout (red)
|
||
|
Wavelength
|
850nm
|
||
|
Type of light
|
Infrared light (NIR), invisible
|
||
|
Function
|
Automatic reset
|
||
|
Synchronization
|
Line synchronization
|
||
|
Performance data
|
|||
|
Protection circuit
|
Short circuit protection
|
||
|
Supply voltage
|
Overvoltage protection
|
||
|
Maximum current consumption
|
24VDC,-20...20%
|
||
|
Fuse
|
150mA
|
||
|
Environmental data
|
|||
|
Protection grade
|
IP65
|
||
|
Resistance to ambient light
|
Incandescent light: illumination of light-receiving surface 3000Lx; Sunlight: illumination of light-receiving surface 10000Lx
|
||
|
Ambient temperature
|
Working temperature: - 10~+40 ℃ (but not frozen), storage temperature: - 25 -+55 ℃
|
||
|
Ambient humidity
|
Working time: 35~85% RH, saving time: 35~95% RH
|
||
|
Output
|
|||
|
Number of safe output circuits (OSSD)
|
2-circuit
|
||
|
Type
|
Safety circuit output circuit OSSD
|
||
|
Minimum switch voltage high
|
18V
|
||
|
Minimum switch voltage low
|
2.5V
|
||
|
Typical switching voltage
|
22.5V
|
||
|
Voltage type
|
DC
|
||
|
Maximum current load
|
380mA
|
||
|
Load inductance
|
two thousand
|
||
|
Load capacity
|
zero point three
|
||
|
Maximum residual current
|
0.2mA
|
||
|
Typical residual current
|
0.002MA
|
||
|
Voltage drop
|
1.5V
|
||
|
Safety switch output 1
|
Connection pin 4, WHITE OSSD1
|
||
|
Switching element
|
Transistor PNP
|
||
|
Safety switch output 2
|
Connection pin 5, GREEN OSSD2
|
||
|
Switching element
|
Transistor PNP
|
||
|
Electrical interface
|
|||
|
Number of interfaces
|
2 (receiver and transmitter)
|
||
|
Type
|
M12 connector, 7-pin
|
||
|
Interface metal
|
Copper nickel plating
|
||
|
Plug material
|
GY384 gray 30P
|
||
|
Allowable typical conductor section
|
0.25m²
|
||
|
Maximum link cable
|
100m
|
||
|
Maximum allowable cable load
|
4.9A
|
||
|
Cable material
|
PVC
|
||
Doplňkové parametry
| Kategorie: | Optické závory |
|---|---|
| Záruka: | 1 rok |
