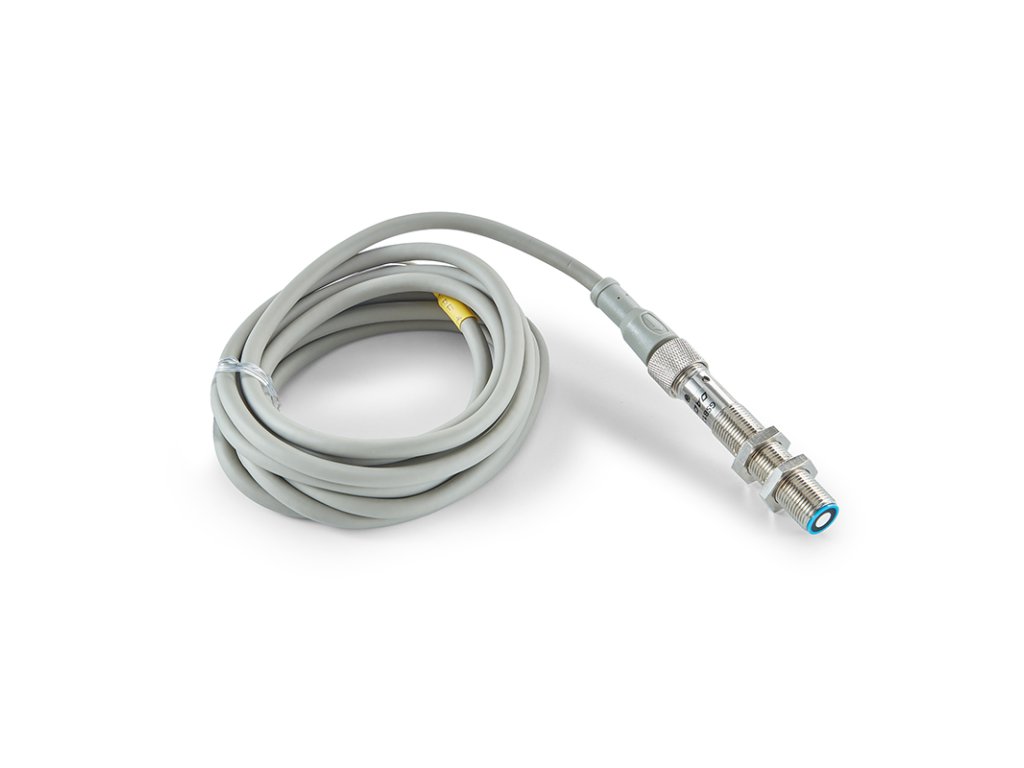

CSB12-200-J55-E4-V1
Kód: 3007
Certifikované v EU
Všechny produkty jsou certifikovány pomocí Notified Body v EU.
Garance vrácení peněz!
Věříme si a pokud budete nespokojeni, peníze Vám vrátíme.
Testováno!
Všechny typy produktů jsme v ČR otestovali a ručíme za kvalitu!
Produkty do 14 dnů
na jakékoliv místo v rámci EU
Detailní popis produktu
|
CSB12 series single switch output E2/E3/E4/E5
|
||||
|
Model
|
CSB12-120-J55-E2-V1
|
CSB12-200-J55-E2-V1
|
||
|
CSB12-120-J55-E3-V1
|
CSB12-200-J55-E3-V1
|
|||
|
CSB12-120-J55-E4-V1
|
CSB12-200-J55-E4-V1
|
|||
|
CSB12-120-J55-E5-V1
|
CSB12-200-J55-E5-V1
|
|||
|

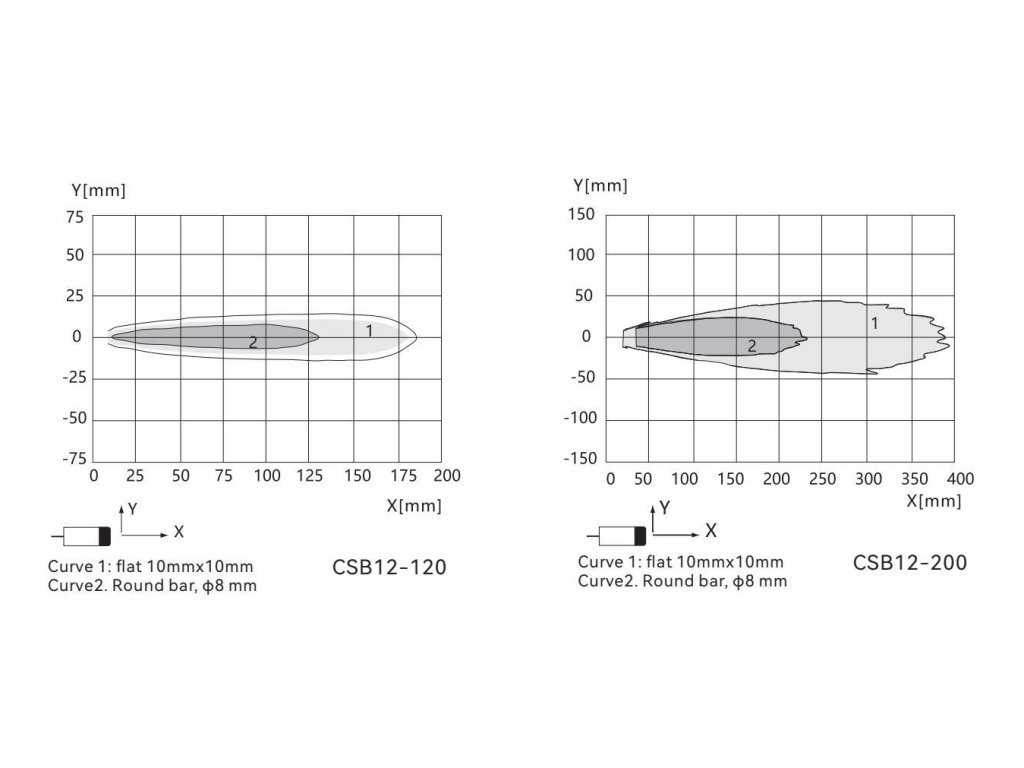

Detection range
|
20-120 mm
|
20-200 mm
|
||
|
Blind zone
|
0-20 mm
|
0-20 mm
|
||
|
Resolution
|
0.1 mm
|
0.1 mm
|
||
|
Repeatability
|
±0.15% of full-scale value
|
±0.15% of full-scale value
|
||
|
Absolute accuracy
|
±1 % ( built-in temperature drift compensation )
|
±1 % ( built-in temperature drift compensation )
|
||
|
Response time
|
18 ms
|
22 ms
|
||
|
Switching hysteresis
|
1 mm
|
1 mm
|
||
|
Switching frequency
|
55 Hz
|
45 Hz
|
||
|
Input type
|
With synchronous learning function
|
With synchronous learning function
|
||
|
Output type：E2/E4
|
1 NPN switch output, NO/NC
|
1 NPN switch output, NO/NC
|
||
|
Output type：E3/E5
|
1 PNP switch output, NO/NC
|
1 PNP switch output, NO/NC
|
||
|
Weight
|
16 g
|
20 g
|
||
|
CSB12 series analog quantity/RS485/IO-LINK output I/U/R4/IO
|
||||
|
Model
|
CSB12-120-J65-I-V1
|
CSB12-200-J65-I-V1
|
||
|
CSB12-120-J65-U-V1
|
CSB12-200-J55-U-V1
|
|||
|
CSB12-120-J55-R4-V1
|
CSB12-200-J55-R4-V1
|
|||
|
CSB12-120-J55-IO-V1
|
CSB12-200-J55-IO-V1
|
|||
|
Detection range
|
20-120 mm
|
20-200 mm
|
||
|
Blind zone
|
0-20 mm
|
0-20 mm
|
||
|
Resolution
|
0.1 mm
|
0.1 mm
|
||
|
Repeatability
|
±0.15% of full-scale value
|
±0.15% of full-scale value
|
||
|
Absolute accuracy
|
±1 % ( built-in temperature drift compensation )
|
±1 % ( built-in temperature drift compensation )
|
||
|
Response time
|
18 ms
|
22 ms
|
||
|
Input type
|
With synchronous learning function
|
With synchronous learning function
|
||
|
Output type：I
|
1 analog current output 4-20 mA
|
1 analog current output 4-20 mA
|
||
|
Output type：U
|
1 analog voltage output 0-10 V
|
1 analog voltage output 0-10 V
|
||
|
Output type：R4
|
1 RS485 output, Modbus-rtu
|
1 RS485 output, Modbus-rtu
|
||
|
Output type：IO
|
1 push pull, IO-link support output
|
1 push pull, IO-link support output
|
||
|
Weight
|
16 g
|
20 g
|
||
|
Electrical data
|
|||
|
Power-up Timer
|
<500 ms
|
||
|
Operating voltage
|
10-30 V DC, reverse polarity protection
|
||
|
LED red light
|
No target is always bright, and no target flashes when studying.
|
||
|
LED green Iight
|
Detected that the target is always bright, and the target flashes when studying.
|
||
|
Overpower protection
|
200mA, red light and green light flashing at the same time.
|
||
|
Load impedance
|
I / 0-300 Ohm, U/ > 1k Ohm
|
||
|
No-load current
|
≤30 mA
|
||
|
Structure
|
Cylindrical
|
||
|
Material
|
Copper nickel plating, plastic fittings, glass filled epoxy resin.
|
||
|
Connection type
|
4-pin M12 connector
|
||
|
Protection Class
|
IP67
|
||
|
Environmental parameters
|
|||
|
Ambient temperature
|
-25°C~+70°C (248~343K)
|
||
|
Storage temperature
|
-40°C~+85°C (233~358K)
|
||
Doplňkové parametry
| Kategorie: | CSB12 dosah (mm) 20-120/20-200 |
|---|---|
| Záruka: | 1 rok |
